제품 상세 정보:
|
|
| 원래 장소: | 중국 (본토) |
|---|---|
| 브랜드 이름: | YT |
| 모델 번호: | PC20 |
|
결제 및 배송 조건:
|
|
| 최소 주문 수량: | 1pcs |
| 가격: | negotiable |
| 포장 세부 사항: | 수출 포장 |
| 배달 시간: | 7-30 일 |
| 지불 조건: | l/c, t/t |
| 공급 능력: | 10000 PCS/월 |
|
상세 정보 |
|||
| 재료: | 40Mn2 또는 35MnBH 강철 | 기술: | 위조와 열처리 |
|---|---|---|---|
| 품질: | 열처리 로크웰C경도 40-55 | 가격 기간: | FOB/CFR/CIF/EXW |
| 색상: | 노랗거나 검습니다 | 보증 시간: | 12-18개월 |
| 상태: | 새로운 | 무게: | 선택 과목 |
| 강조하다: | Mid-Frequency Heat-Treatment Technology Track Chain Assembly,Self-Lubricated System Track Link Group,Precision Assembly Dimensions Excavator Undercarriage Spare Parts |
||
제품 설명
Utilizing sophisticated machining centers, including horizontal and vertical CNC technology, we perform precision operations like cutting, boring, tapping, and grinding to guarantee component quality and accuracy. This ensures precise assembly dimensions while extending component lifespan and minimizing hourly production expenses.

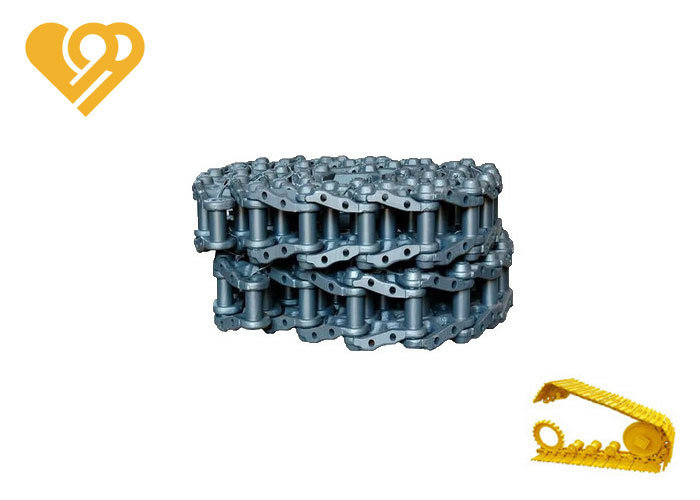

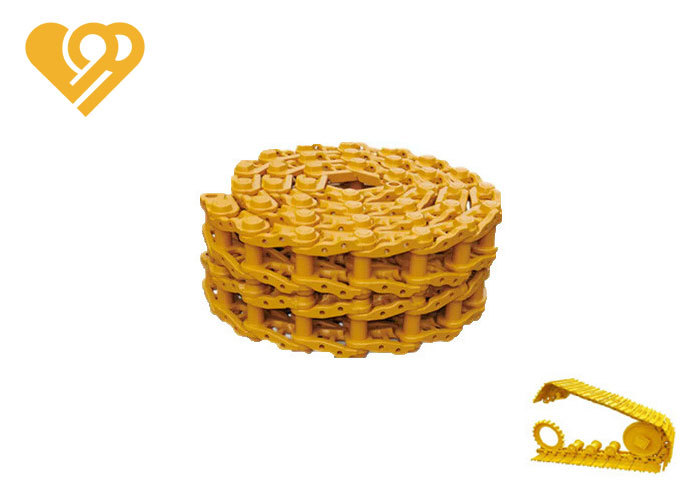

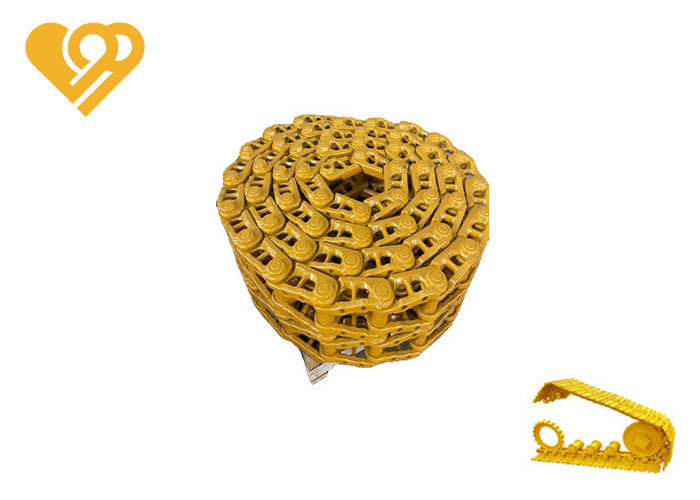

Track links are manufactured from 35 MNB forged special steel, reinforced with advanced structure technology and heat treatment processes. This combination delivers maximum strength and abrasion resistance. The integrated self-lubricated system significantly enhances track chain bearing service life.
| Suitable Model | P | A | B | C | E | F | H | K | L |
|---|---|---|---|---|---|---|---|---|---|
| EX30/EX35/PC20/PC30/PC35R | 101.6 | 55 | 55 | 22 | 10.5 | 35 | 76 | 63 | 26 |
| IHI30J | 101.6 | 64 | 64 | 22 | 10.5 | 44 | 85 | 63 | 26 |
| PC20 | 101.6 | 52 | 52 | 22 | 10.5 | 32 | 73 | 65 | 28 |
| YC35 | 101.6 | 55 | 55 | 22 | 12.5 | 35 | 77 | 70 | 30 |
| TM20 | 101.6 | 55 | 55 | 22 | 10.5 | 34 | 72 | 61 | 29.5 |
| PC40-7/SK45 | 135 | 93.8 | 63.8 | 46 | 12.5 | 40.4 | 87.4 | 65 | 30 |
| EX40/EX45 | 135 | 104 | 80 | 46 | 12.5 | 52 | 105 | 65 | 30 |
| PC60-6/PC75/SK60 | 154 | 89 | 73 | 57 | 14.5 | 45 | 104 | 74 | 33.5 |
| PC100-1/2/PC100-3/HD350 | 154 | 112.4 | 82.4 | 57 | 14.5 | 49.4 | 124.4 | 87 | 40 |
| EX60-1/2/3/5 | 154 | 90 | 90 | 55 | 14.5 | 56 | 127 | 80 | 38 |
The models above are for reference only. We can supply additional products to meet your requirements. Please contact us with your specific needs.
